Std ProjectUtil
Jump to navigation
Jump to search
Std Base
User documentation
|
|
| Menu location |
|---|
| Tools → Document utility... |
| Phenomena |
| All |
| Default shortcut |
| None |
| Introduced in version |
| - |
| See also |
| None |
Description
With the Std ProjectUtil command you can extract files from a LabRPS project file (*.RPSStd), which is in fact a ZIP file, and, after manual edits, create a new project file from them.

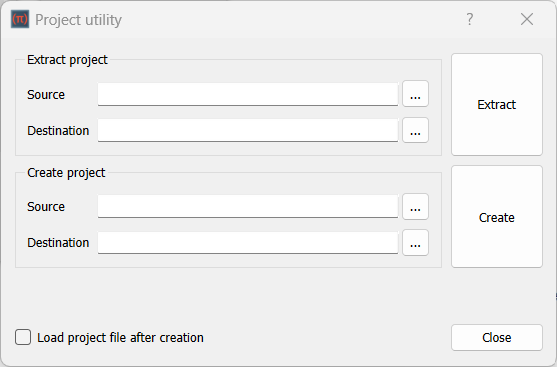

The Project utility dialog box
Usage
Extract project
- Select the Tools →
Document utility... option from the menu. - The Project utility dialog box opens.
- Press the ... button to the right of Extract project → Source.
- Select the *.RPSStd file you want to edit.
- Press the ... button to the right of Extract project → Destination.
- Select a folder where the project file should be extracted. It is advisable to select an empty folder.
- Press the Extract button.
- Press the Close button to close the dialog box.
Manual edits
It is important to realize that the files inside a LabRPS project file are interlinked. Only editing a single file will typically lead to errors. To make consistent edits across multiple files use a good code editor, such as Notepad++ (for the Windows OS) or Notepadqq (for Linux OS).
Create project
- Select the Tools → Project utility... option from the menu.
- The Project utility dialog box opens.
- Press the ... button to the right of Create project → Source.
- Select the Document.xml file. The command will be automatically find all linked files.
- Press the ... button to the right of Create project → Destination.
- Select a folder where the new project file should be created.
- Press the Create button.
- A new project file with a fixed name, project.fcstd, is created in the selected folder. There is no warning if a file with that name already exists.
- Optionally check the Load project file after creation checkbox.
- Press the Close button to close the dialog box.
Notes
- For more information about the LabRPS project file format see File Format RPSStd.
