Plot Positions

From LabRPS Documentation
Jump to navigation Jump to search
Arrow-left.svg Previous: Plot Labels.svg Labels

Plot Positions.svg Plot Positions

Menu location
Plot → Set positions and sizes
Phenomena
{{{Phenomena}}}
Default shortcut
None
Introduced in version
-
See also
None

Description

This tool allows the user to edit the position of some items like titles, axes labels and legend.

Plot MultiAxes Example.png

Usage

Select the plot tab that you want to edit, and run this tool. Then you can select the item you want to edit in the selector

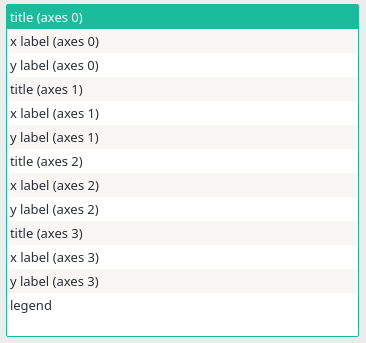

Items position selector

Selector for the item to de edited

Options

  • Position: x and y coordinates of the item. The axes labels can only moved along its own axis
  • Font size: The font size considered for the item.
