Macro Deodatis 1996 Wind Simulation Points

From LabRPS Documentation
Jump to navigation Jump to search

Macro Deodatis 1996 Wind Simulation Points.png Macro Deodatis 1996 Wind Simulation Points

Description
This macro create simulation point according to G. Deodatis 1996.

Macro version: 1.0
Last modified: 2024-04-15
LabRPS version: All
Author: Koffi Daniel
Author
Koffi Daniel
Download
None
Links
Macro Version
1.0
Date last modified
2024-04-15
LabRPS Version(s)
All
Default shortcut
None
See also
Macro Deodatis 1996 Mean Wind Profile

This macro create simulation point according to G. Deodatis 1996. There are three simulation points created with WindLabFeatureLocationDistribution feature.


Simulation Point Distribution

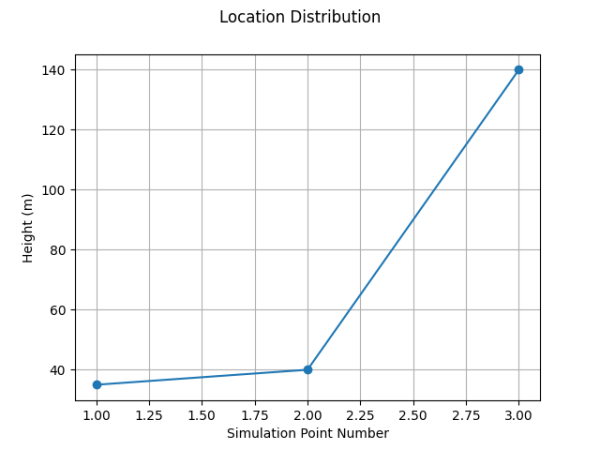

Points Heights‎

Script

You can find the source code on the following Github repository: Get the code here!

Macro Deodatis 1996 Wind Simulation Points.RPSMacro

# -*- coding: utf-8 -*-
# (c) Koffi Daniel 2024

import LabRPS
from LabRPS import Vector as vec

import WindLab
import WindLabObjects

class Deodatis1996LocationDistribution():
    def __init__(self):
        #install the WindLab plugin with all its plugged features
        installResuslt = WindLab.installPlugin("WindLabPlugin")

        # create new document
        doc = LabRPS.newDocument()

        # create new simulation with default name "Simulation" in the above document
        sim = WindLabObjects.makeSimulation(doc)

        # check if the simulation is successfully created
        if not sim:
            LabRPS.Console.PrintError("The simulation does not exist.\n")
            return None

        # create new location distribution in the simulation called "Simulation"
        loc = WindLabObjects.makeFeature("SimulationPoints", "Simulation", "Location Distribution",  "General Distribution")

        # check if the created location distribution feature is null
        if not loc:
            LabRPS.Console.PrintError("Error on creating the location distribution.\n")
            return None

        # set the coordinates of the simulation points
        v1 = vec(0, 0, 35)
        v2 = vec(0, 0, 40)
        v3 = vec(0, 0, 140)
        loc.Locations = [v1, v2, v3]

        # run the method "computeLocationCoordinateMatrixP3" of the feature and store the result.
        locRes = sim.computeLocationCoordinateMatrixP3()

        if LabRPS.GuiUp:
            import WindLabGui
            #show the location coordinate in Alphaplot
            WindLabGui.WindLabPyTool.showArray(sim.getSimulationData().numberOfSpatialPosition, 4, locRes)
            loc.ViewObject.Document.activeView().viewAxonometric()
            loc.ViewObject.Document.activeView().fitAll()

            import numpy
            import matplotlib.pyplot as plt
            arr = numpy.asarray(locRes)
            fig, ax = plt.subplots()
            fig.suptitle('Location Distribution')
            ax.plot(arr[:,0], arr[:,3], 'o-')
            ax.set_xlabel('Simulation Point Number')
            ax.set_ylabel('Height (m)')
            ax.grid(True)
            plt.show()

        doc.recompute()

Deodatis1996LocationDistribution()
